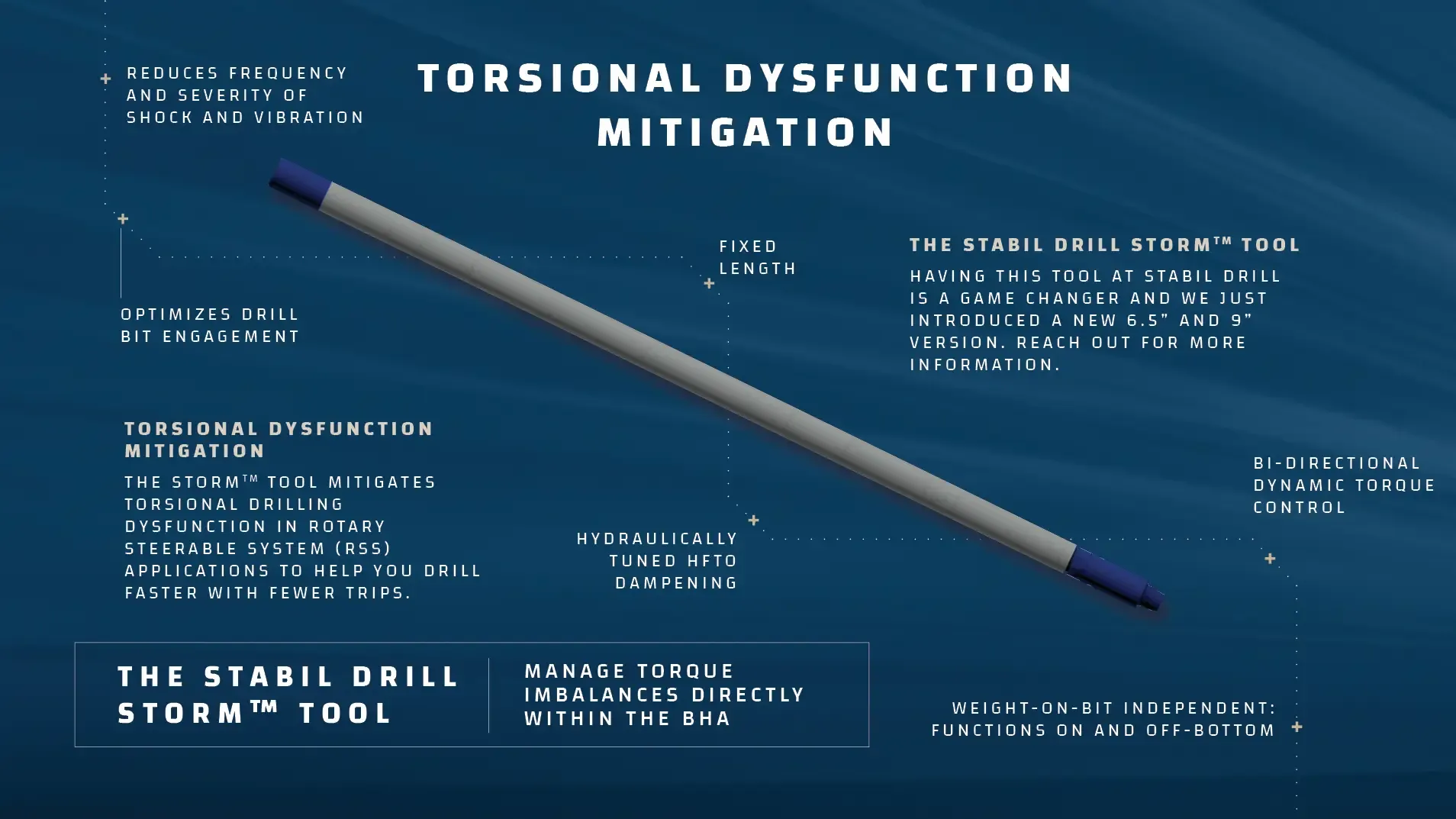

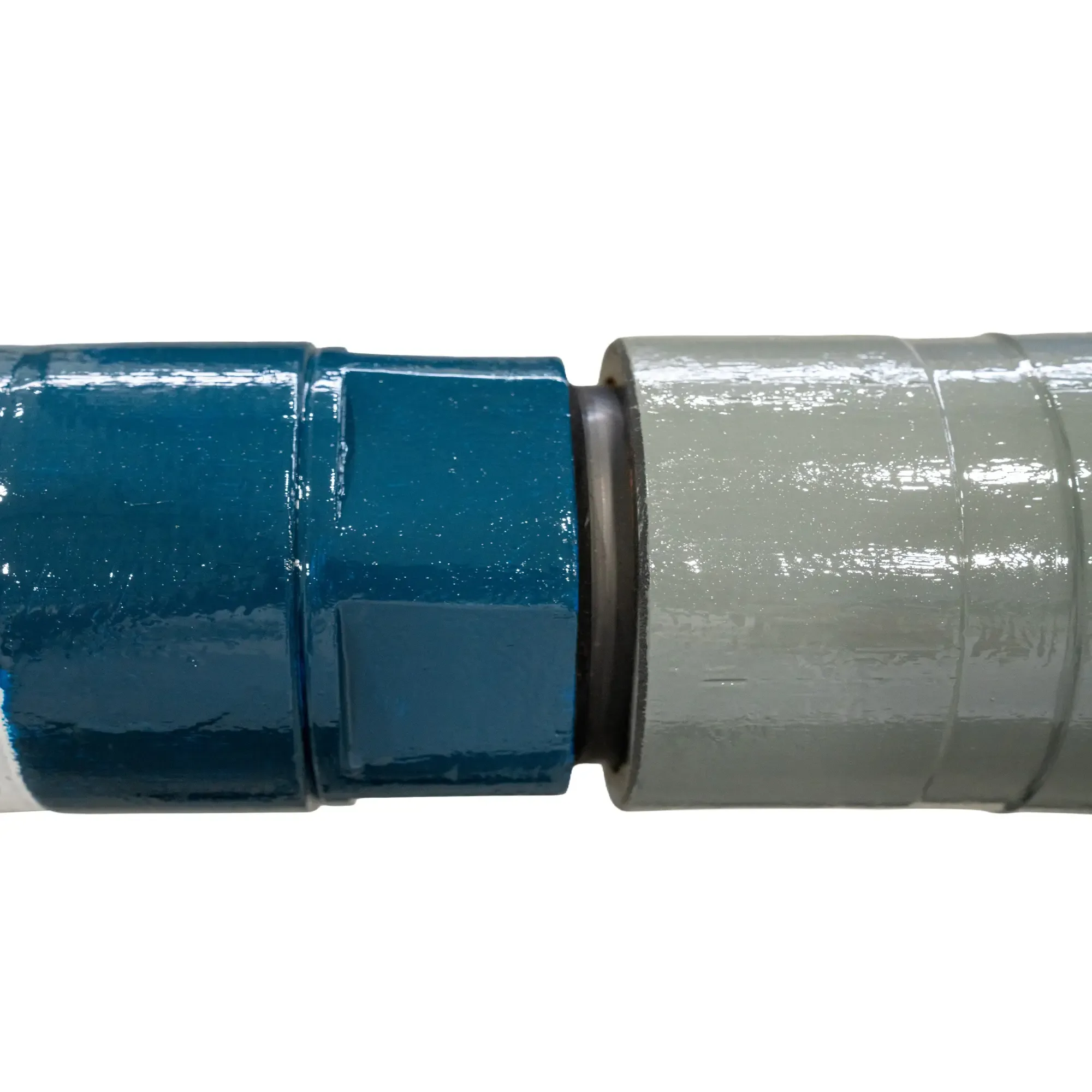

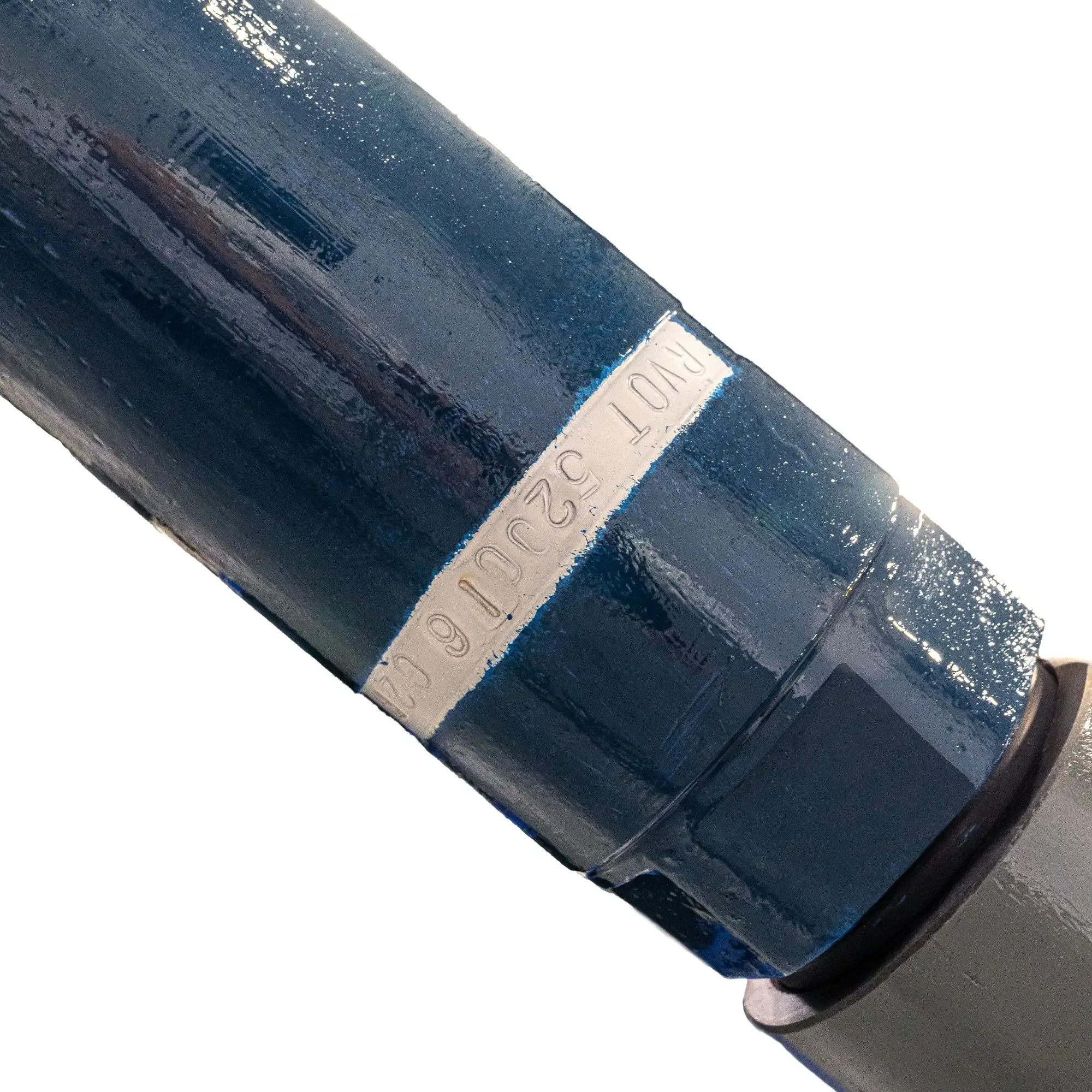

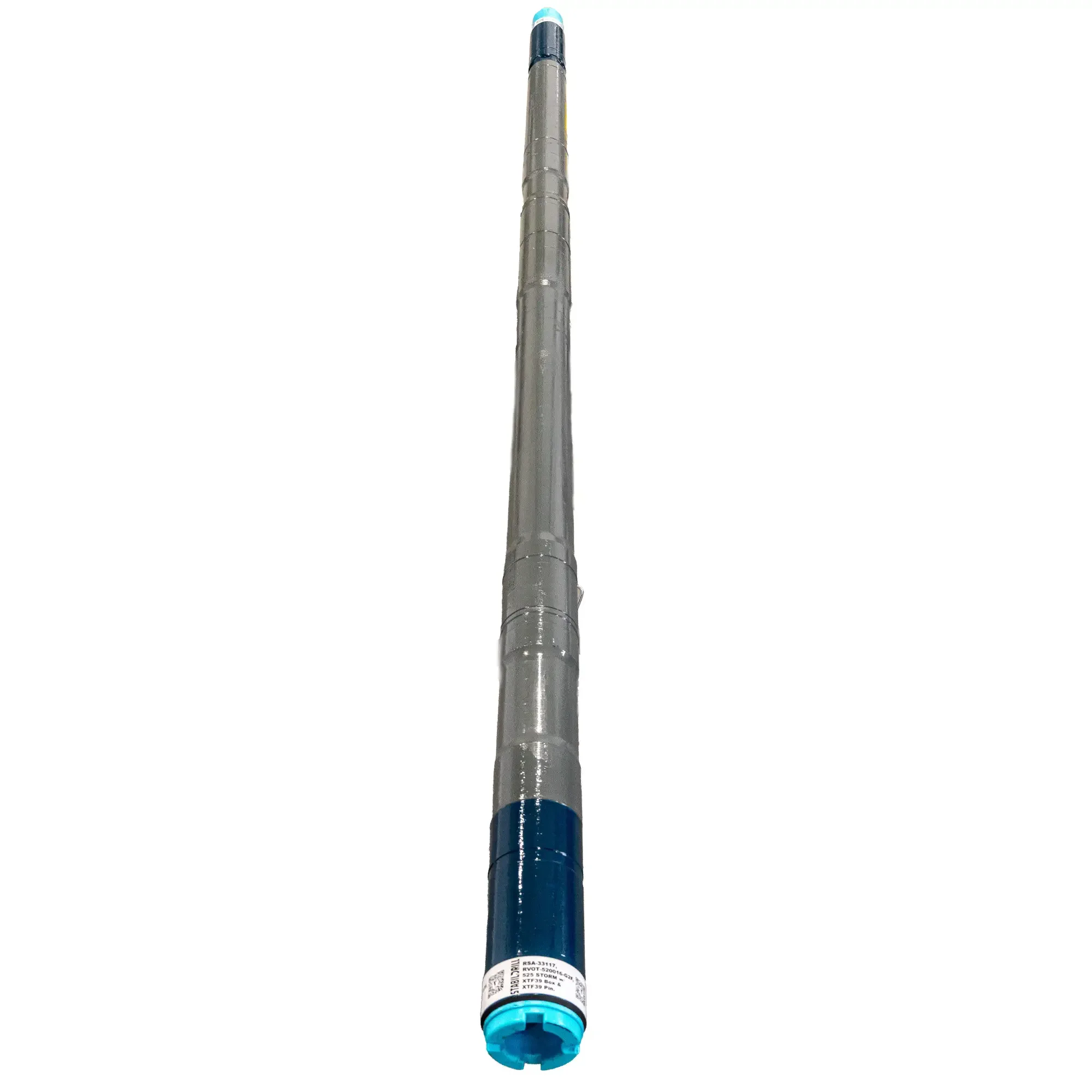

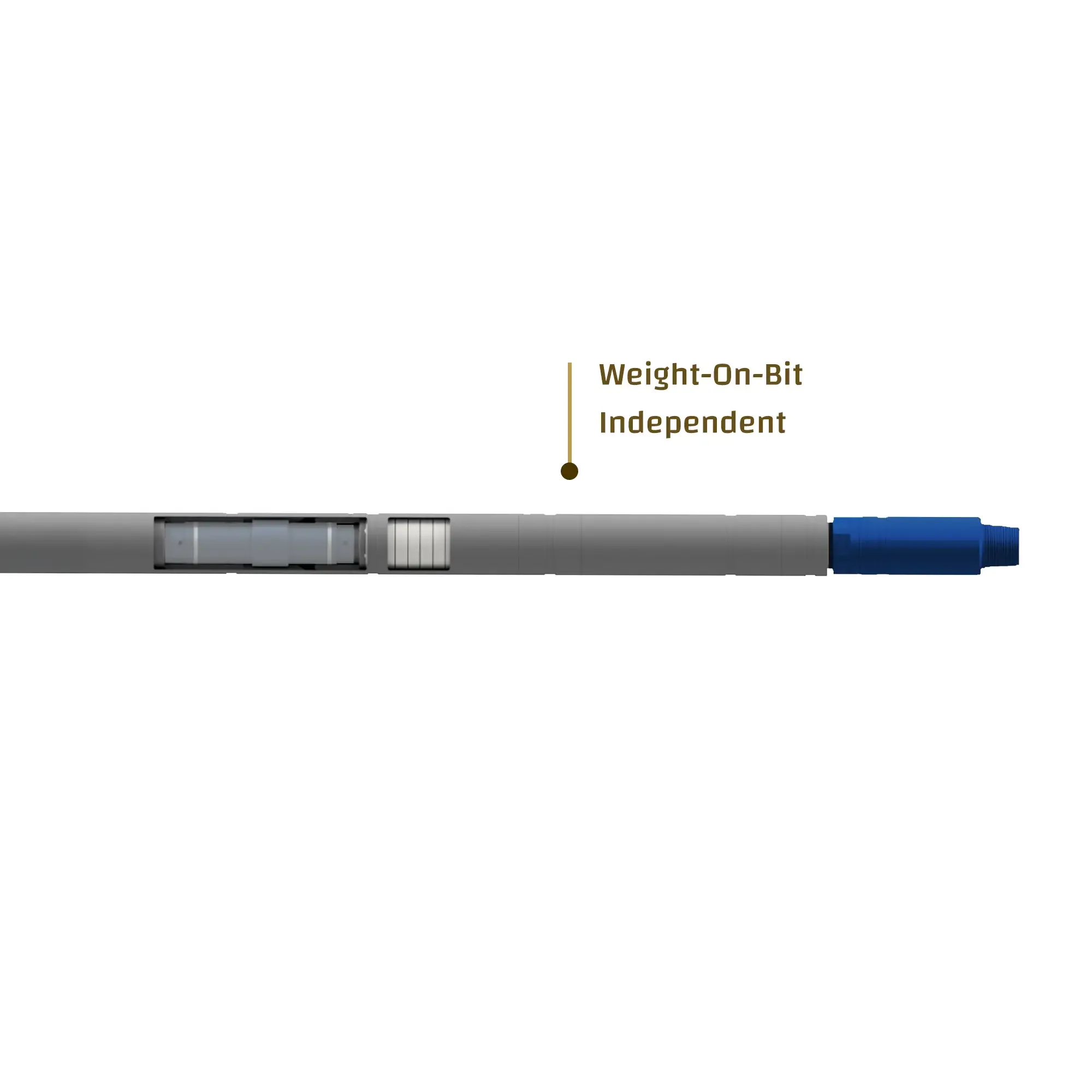

In today’s drilling environments, there’s no margin for tool failure or unplanned trips. That’s why Rival offers STORM™ technology, a proprietary vibration-dampening solution engineered to counter stick-slip and torsional oscillations before they compromise your bit, your budget, or your timeline.

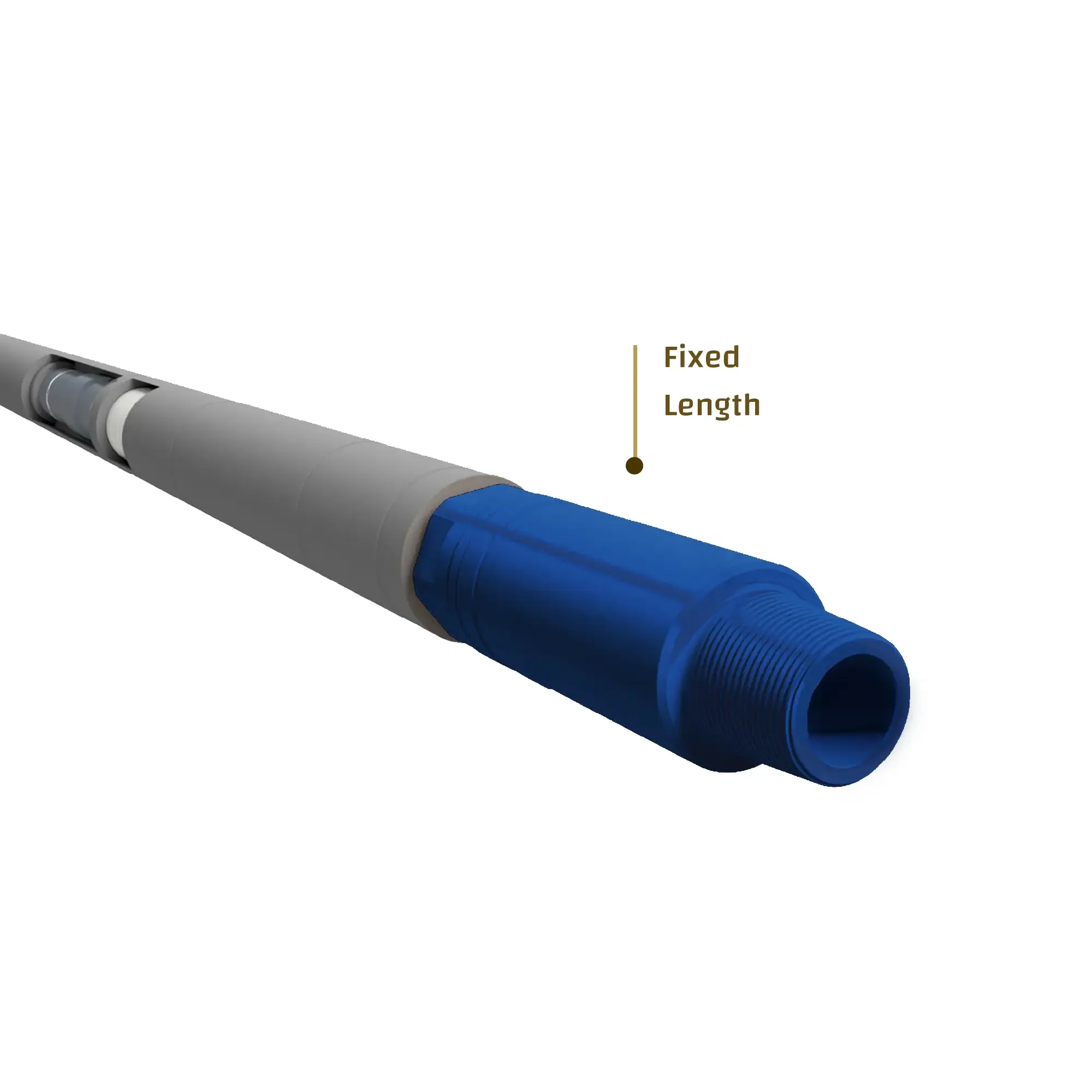

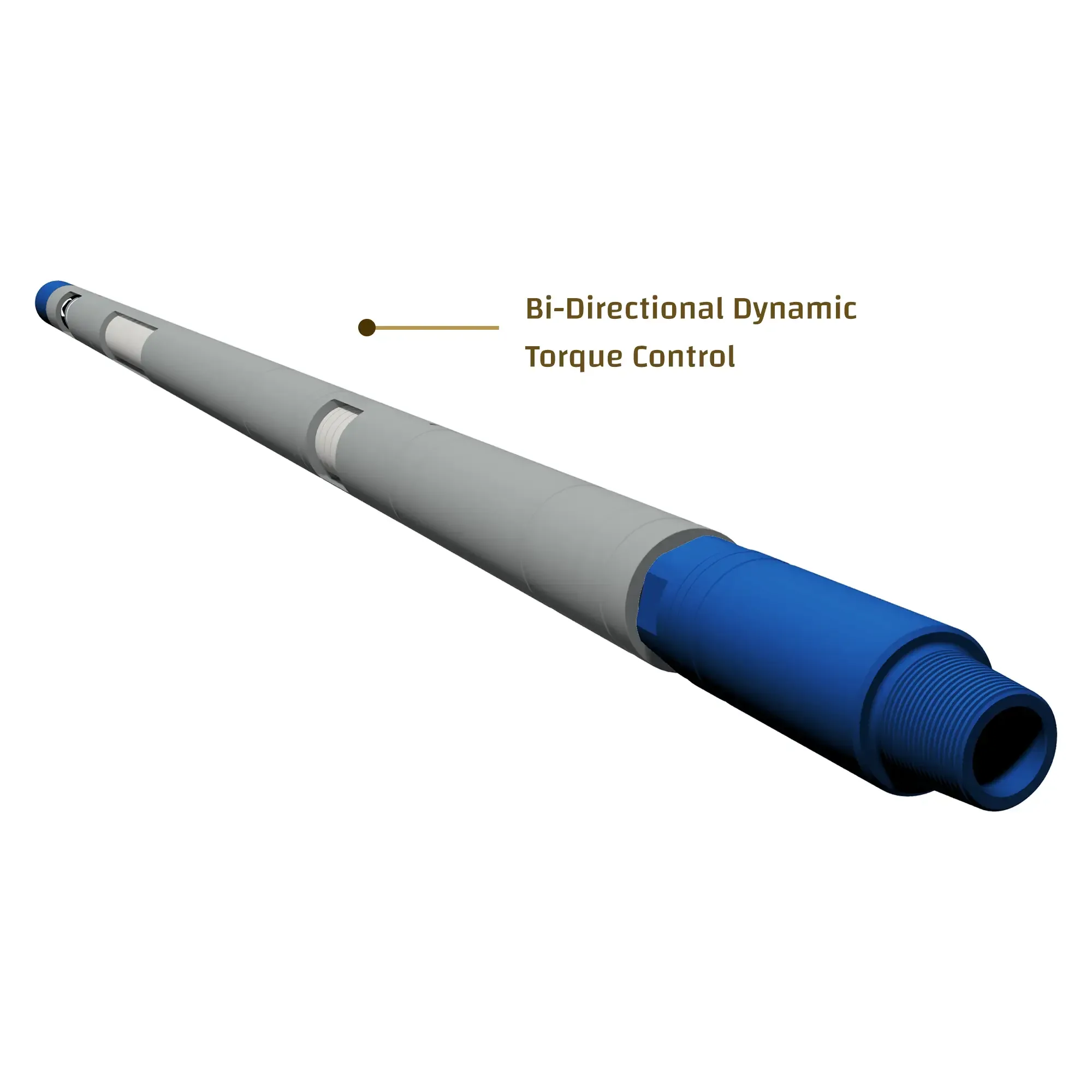

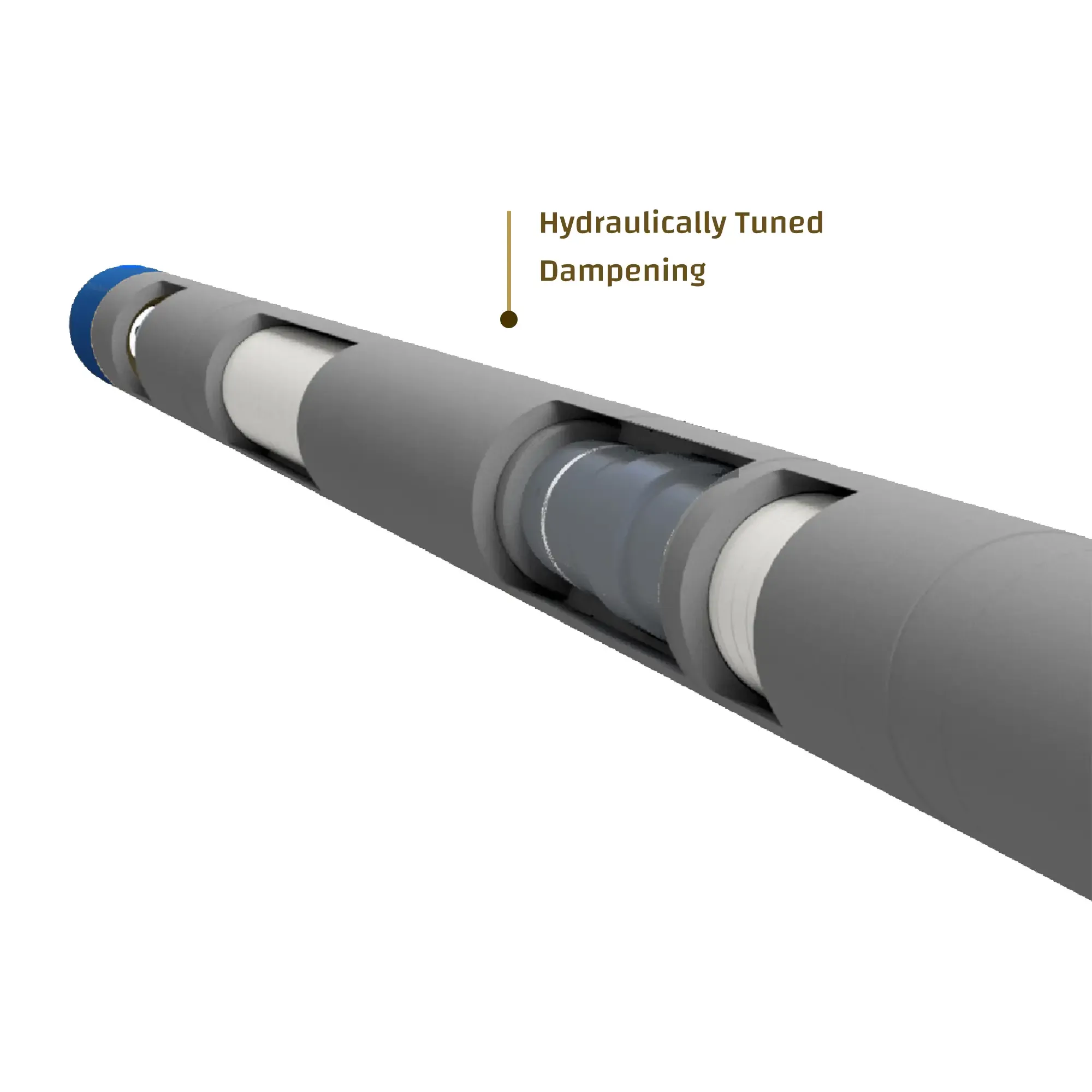

While other tools are built for the most common downhole problems, STORM™ is engineered to withstand them all. Its proprietary vibration-control technology tackles the full spectrum of drilling shocks and oscillations—delivering the kind of reliability, consistency, and quality performance Stabil Drill is known for.
| Model | 4.75" | 5.12" / 5.25" | 6.62" | 7.12" | 9" |
|---|---|---|---|---|---|
| Overall Length | 11.9’ (3.6 m) | 13’ (3.9 m) | 13.5’ (4.1 m) | 17.2’ (5.2 m) | 23’ (7 m) |
| Body OD | 4.75” (120.7 mm) | 5.125 – 5.25” (130.2 - 133.3 mm) | 6.63” (168 mm) | 7.125” (181 mm) | 9” (228.6 mm) |
| Mandrel Pin OD | 4.75 or 5” (120.7 or 127 mm) | 5.125 or 5.25” (130.2 or 133.4 mm) | 6.63” (168 mm) | 6.75” (171.5 mm) | 9” (228.6 mm) |
| Pass Through ID | 1.13” (28.7 mm) | 1.19” (30.2 mm) | 1.63” (41 mm) | 1.63” (41.4 mm) | 2.75” (69.9 mm) |
| Weight | 605 lbs (275 kg) | 730 lbs (330 kg) | 1,325 lbs (601 kg) | 1,960 lbs (890 kg) | 4,000 lbs (1,810 kg) |
| Recommended Hole Sizes | 5-5/8 - 6-3/4” (143 - 171 mm) | 6 - 6-3/4” (152 - 171 mm) | 7-7/8 – 8-3/4” (200-222 mm) | 8-1/4 - 9-7/8” (210 - 251 mm) | 10 5/8 – 26” (270 - 660 mm) |
| Rig Ends | 3-1/2 IF XT(F)-39 w/ 5” Rig Ends | 3-1/2 IF XT(F)-39 & 40 NC40 / DS40 | 4-1/2 IF DS50 | 4-1/2 IF DS50 | 6-5/8 REG 7-5/8 REG |
| Recommended Operating Limits | 4.75" | 5.12" / 5.25" | 6.62" | 7.12" | 9" |
|---|---|---|---|---|---|
| Max Overpull, POOH | 324,000 lbs (144,100 daN) | 400,000 lbs (177,900 daN) | 802,000 lbs (356,700 daN) | 816,000 lbs (363,000 daN) | 900,000 lbs (400,300 daN) |
| Max WOB | 50,000 lbs (22,200 daN) | 54,000 lbs (24,000 daN) | 112,000 lbs (49,800 daN) | 109,000 lbs (48,500 daN) | 195,000 lbs (86,700 daN) |
| Max Temperature | 400°F (200°C) | 400°F (200°C) | 400°F (200°C) 4 | 400°F (200°C) | 400°F (200°C) |
| Performance Details | 4.75" | 5.12" / 5.25" | 6.62" | 7.12" | 9" |
|---|---|---|---|---|---|
| Diff Pressure (@ 8.3 ppf) | 150 Psi @ 300 gpm (1,050 kPa @1,100 L/min) | 125 Psi @ 350 gpm (850 kPa @1,300 L/min) | 160 Psi @ 700 gpm (1,100 kPa @2,650 L/min) | 195 Psi @ 700 gpm ((1,350 kPa @2,650 L/min) | 47 Psi @ 1,200 gpm (320 kPa @4,550 L/min) |
| Operating Torque | 250 - 10,250 ft-lbs (350 - 13,900 N-m) | 250 - 9,500 ft-lbs (350 - 13,000 N-m) | 500 – 18,500 ft-lbs (675 – 25,079 N-m) | 1,000 - 20,000 ft-lbs (1,300 - 27,000 N-m) | 1,500 - 45,000 ft-lbs (2,000 - 61,000 N-m) |
| Maximum Torque | 13,500 ft-lbs (18,500 N-m) | 13,000 ft-lbs (17,500 N-m) | 35,000 ft-lbs (47,457 N-m) | 32,000 ft-lbs (43,500 N-m) | 45,000 ft-lbs (61,000 N-m) |
| Flow Range | 100 - 350 gpm (400 - 1,300 L/min) | 100 - 400 gpm (400 - 1,500 L/min) | 300 - 750 gpm (1,135 – 2,840 L/min) | 300 - 750 gpm (1,100 - 2,800 L/min) | 600 - 1,300 gpm (2,300 - 4,900 L/min) |
| RPM Limits with Max Dog Leg | 4.75" | 5.12" / 5.25" | 6.62" | 7.12" | 9" |
|---|---|---|---|---|---|
| Dog Leg (°/100 ft) | Max RPM | Max RPM | Max RPM | Max RPM | Max RPM |
| <4 | 450 | 450 | 450 | 410 | 400 |
| 8 | 390 | 390 | 360 | 320 | 250 |
| 10 | 380 | 380 | 280 | 240 | 200 |
| 12 | 340 | 340 | 260 | 220 | 180 |
| 14 | 280 | 280 | 240 | 200 | 50 |
| 16 | 100 | 100 | No Rotation | No Rotation | No Rotation |
| >18 | No Rotation | No Rotation | No Rotation | No Rotation | No Rotation |
Dealing with axial and torsional vibration problems? Our STORM tool can be easily configured to operate in tandem with AXE to mitigate both issues.
