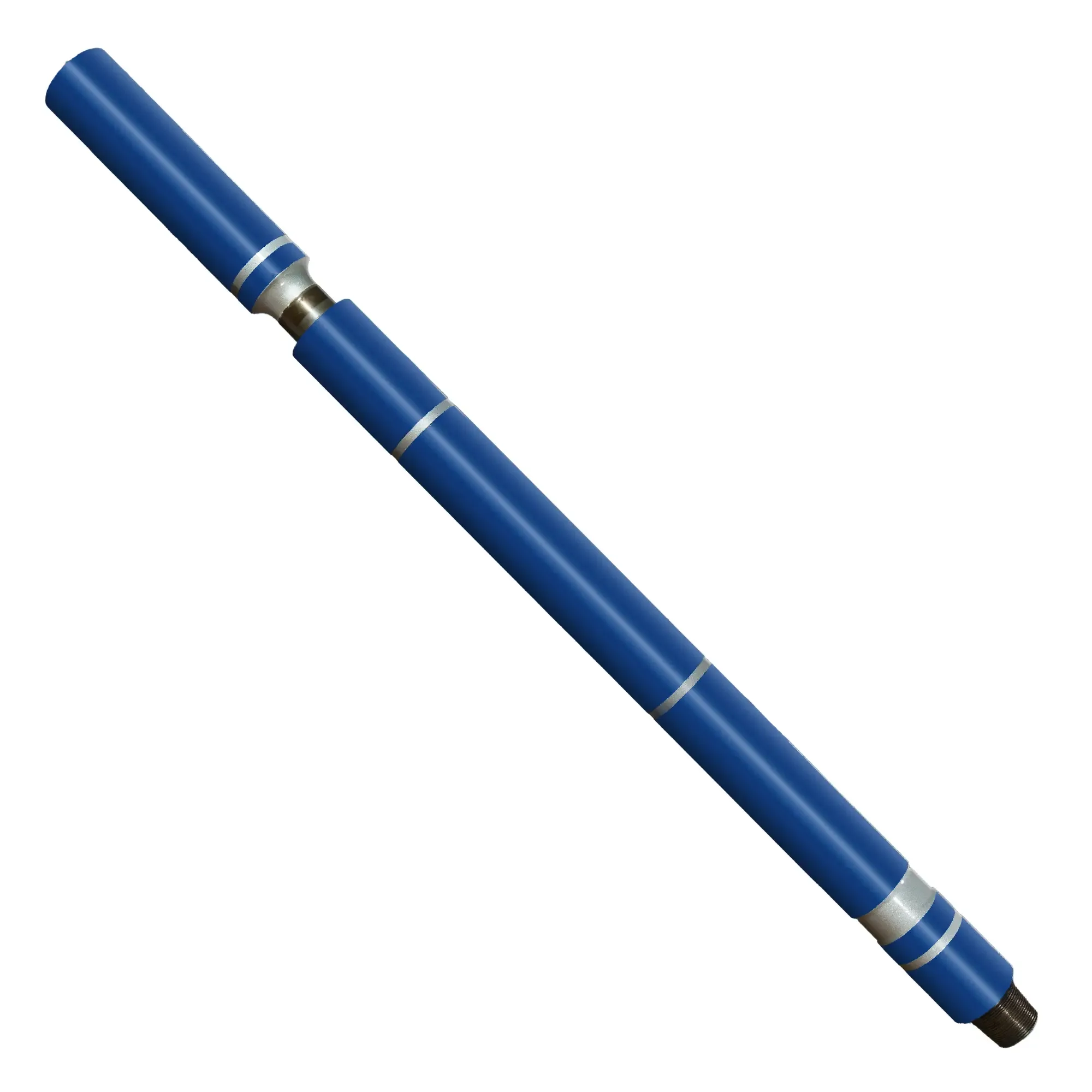

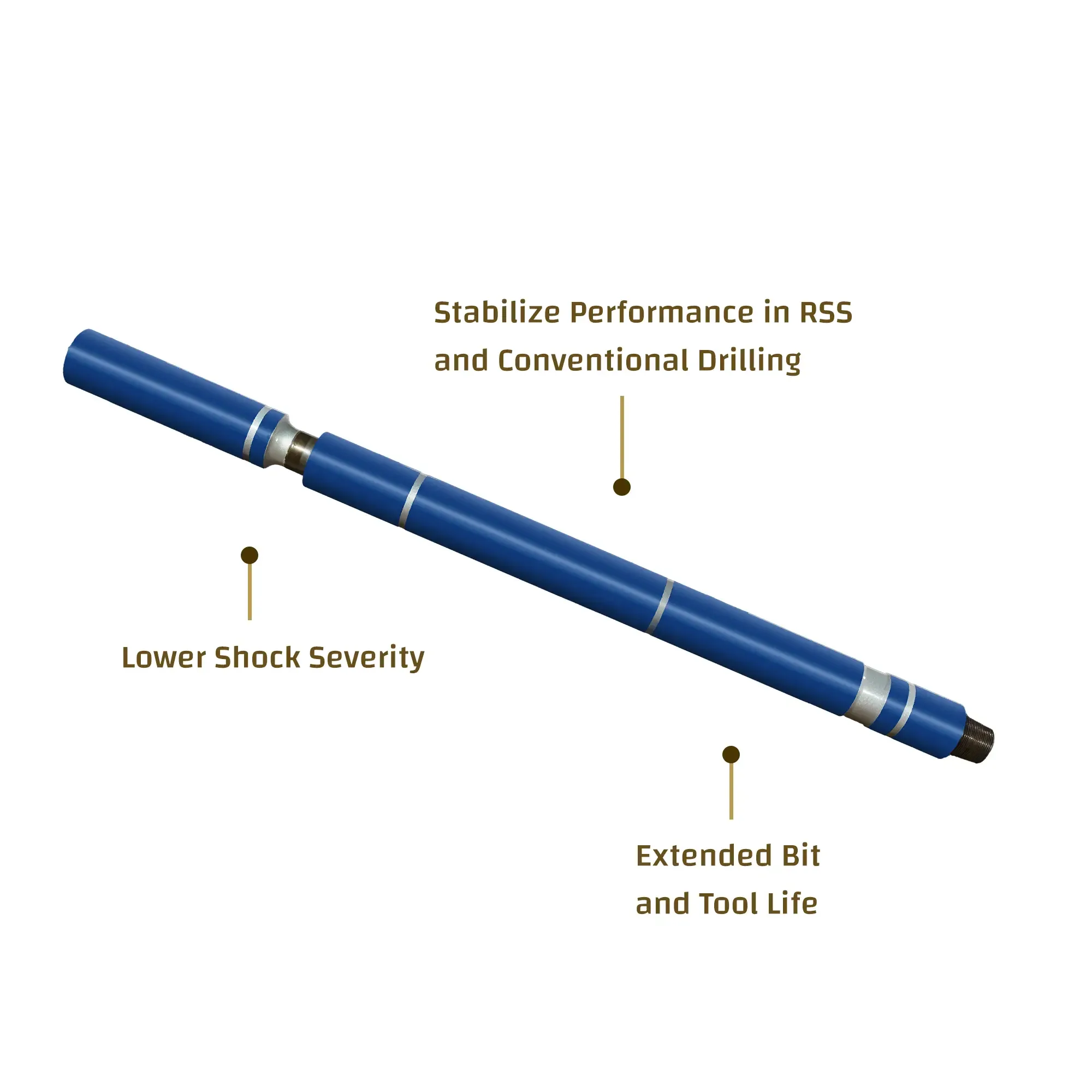

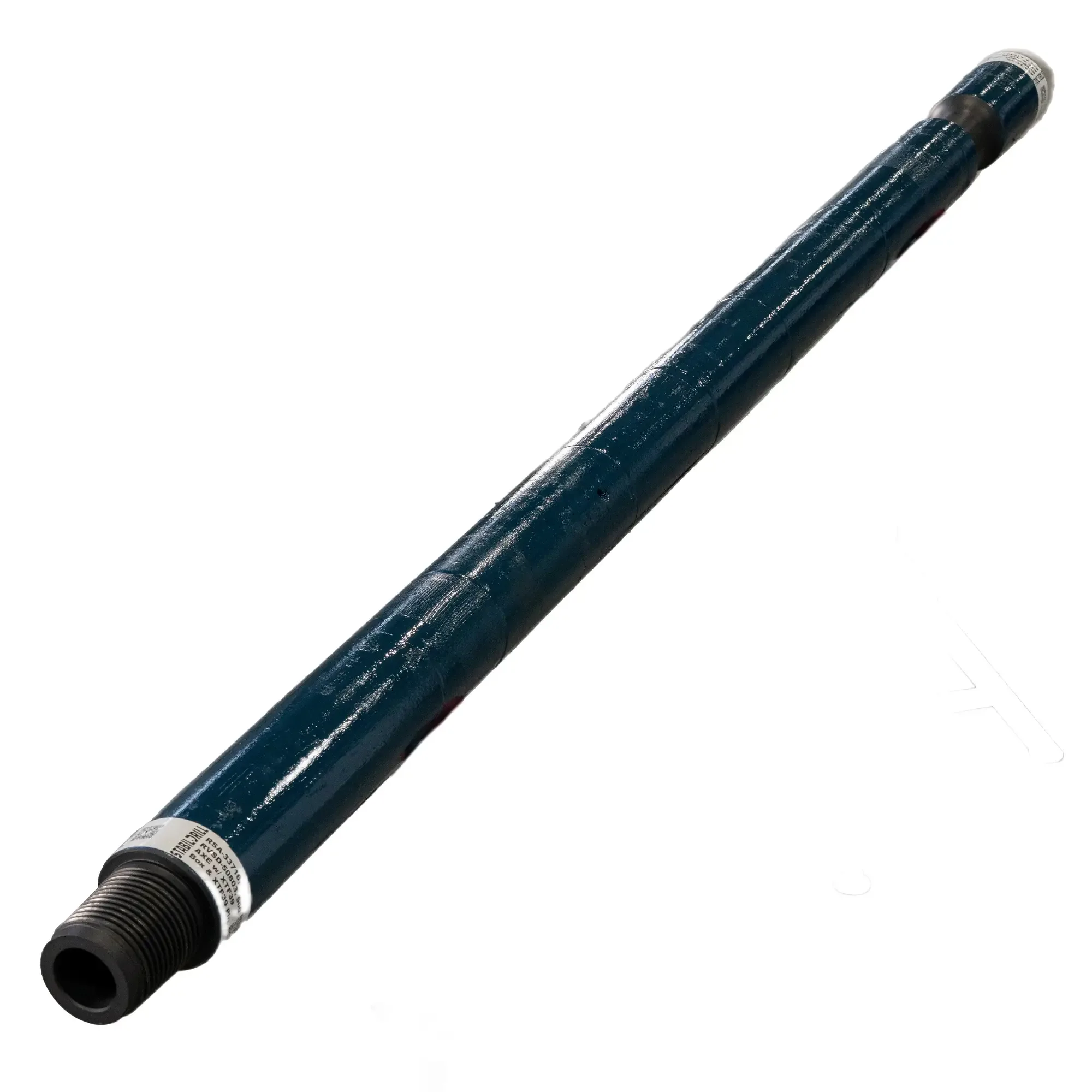

Engineered for conventional or rotary steering system (RSS) drilling, Axe interrupts axial shock and vibration cycles, transforming erratic downhole motion into smooth, consistent performance while reducing the risk of equipment and drill bit damage.

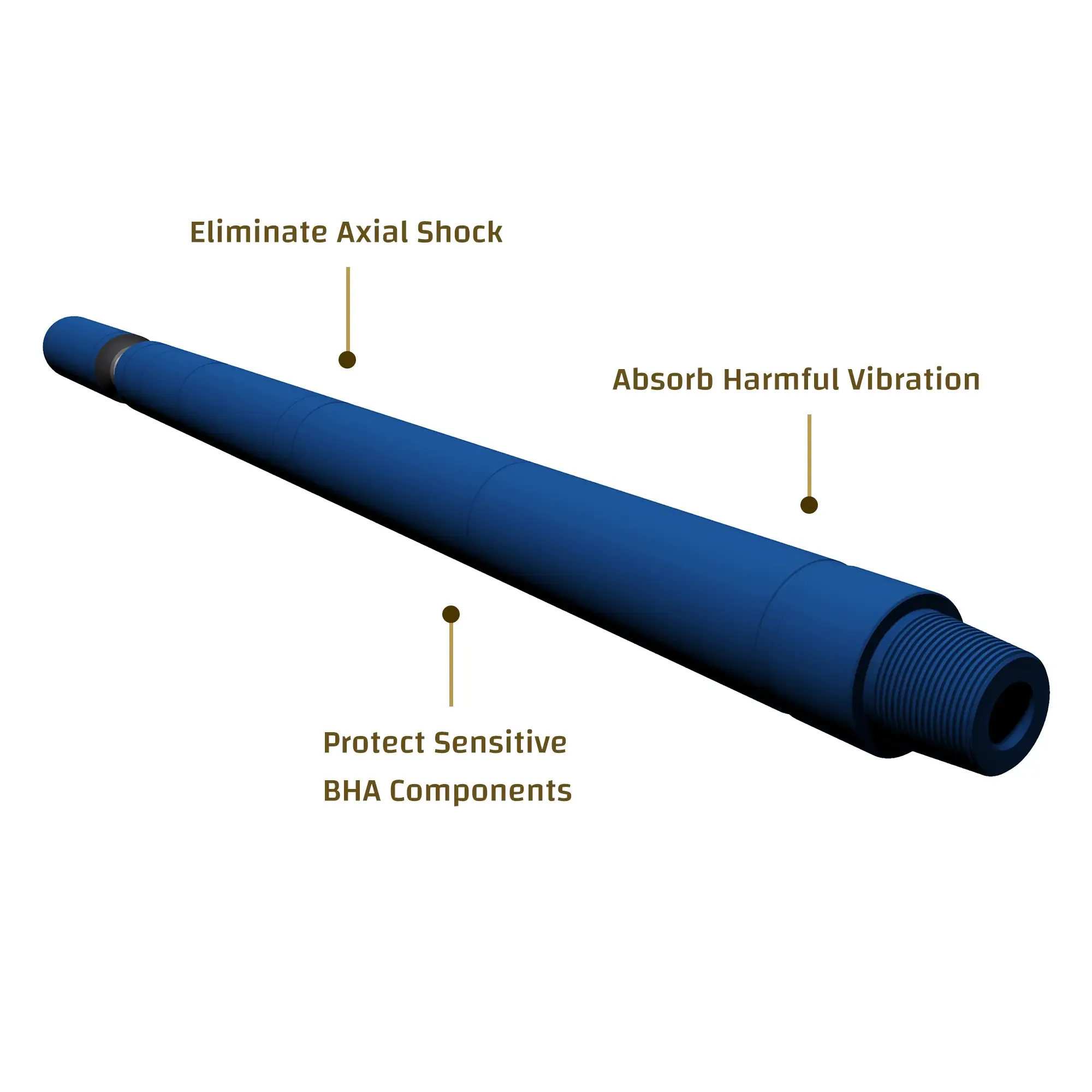

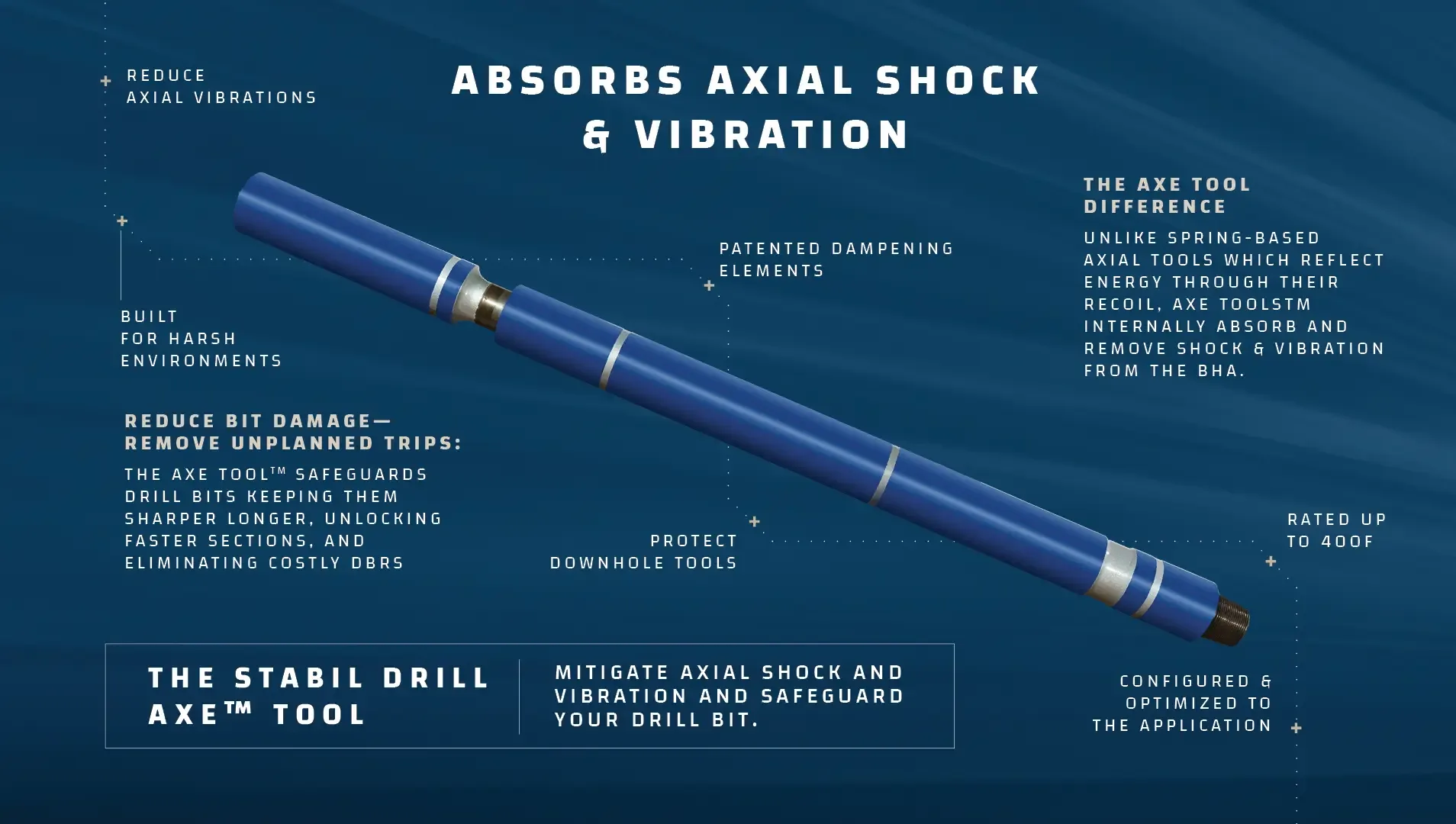

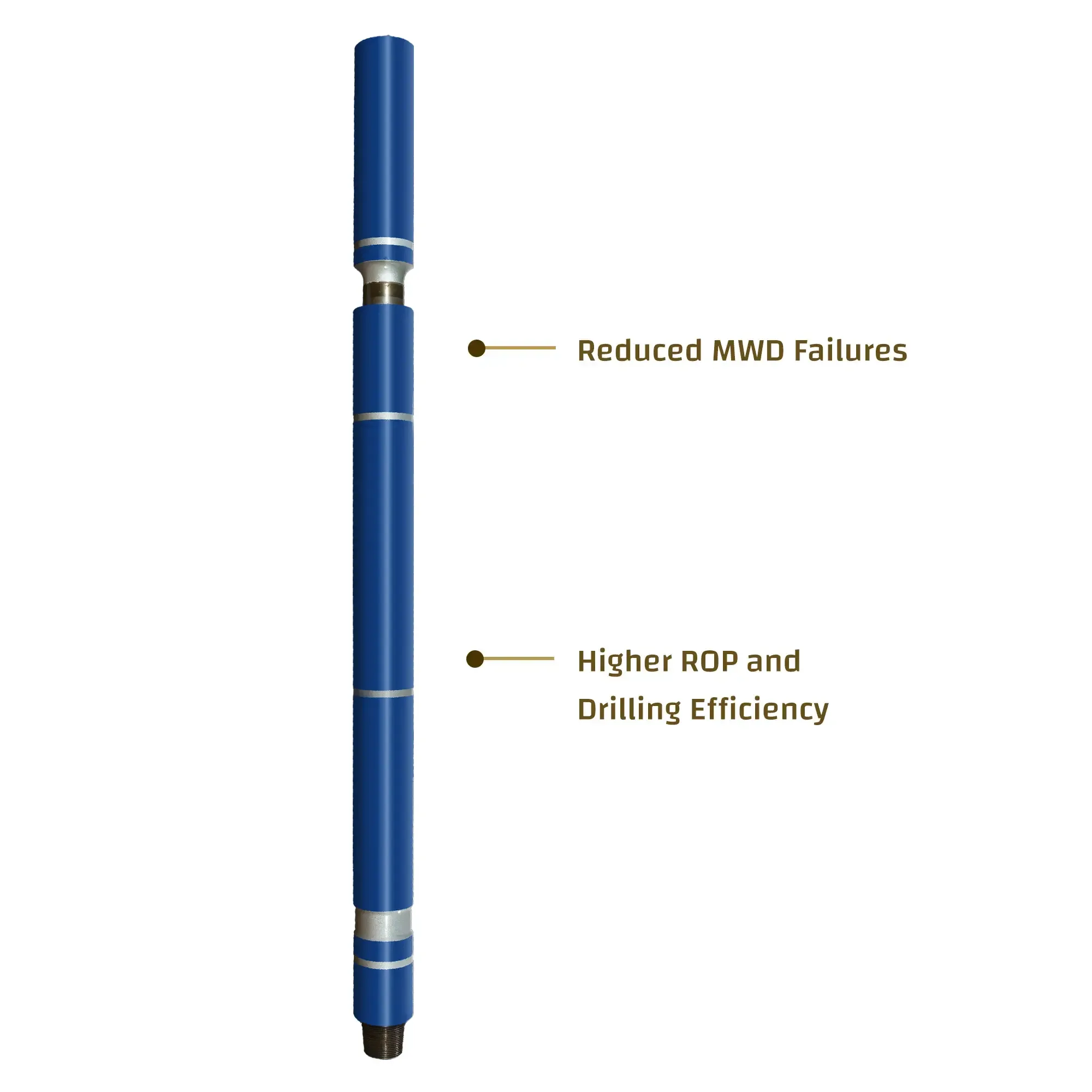

Unlike traditional spring-based shock tools and thrusters, Axe incorporates patented, bi-directional dampening technology, which absorbs and eliminates vibrations instead of redirecting them elsewhere on the BHA. Axe consistently outperforms across all applications and metrics, including shock severity, component life, and MWD failure.
For...
| Size Range (IN) | Size Range (IN) | Size Range (IN) | Size Range (IN) | Size Range (IN) | Size Range (IN) |
|---|---|---|---|---|---|
| Nominal OD | 5" (127mm) | 6.5" (165.1mm) | 8" (203.2mm) | 9" (228.6mm) | Nominal OD |
| Recommended Hole Sizes | 6-1/8 - 6-3/4" (156 - 171mm) |
7-7/8 - 8-3/4" (200 - 222mm) |
9-7/8 - 17-1/2" (251 - 445 mm) |
10-5/8 - 32" (270 - 813 mm) |
Recommended Hole Sizes |
| Length | 8.2' (2.5m) | 8.6' (2.6m) | 9.7 (2.9m) | 11' (3.4m) | Length |
| Inner Diameter | 1.75" (44.5 mm) | 2" (50.8 mm) | 2.5" (63.5 mm) | 2.75" (69.85 mm) | Inner Diameter |
| Weight | 500 lbs (230 kg) | 725 lbs (330 kg) | 1,175 lbs (530 kg) | 1,785 lbs (810 kg) | Weight |
| WOB to Fully Compress | 50,000 lbs (22,200 daN) |
70,000 lbs (31,200 daN) |
100,000 lbs (44,500 daN) |
140,000 lbs (62,300 daN) |
WOB to Fully Compress |
| Overpull to Fully Extend | 50,000 lbs (22,200 daN) |
70,000 lbs (31,200 daN) |
100,000 lbs (44,500 daN) |
140,000 lbs (62,300 daN) |
Overpull to Fully Extend |
| Max Stroke Up to Solid | 3" (76.2 mm) | 3" (76.2 mm) | 3" (76.2 mm) | 3" (76.2 mm) | Max Stroke Up to Solid |
| Max Stroke Down to Solid | 3" (76.2 mm) | 3" (76.2 mm) | 3" (76.2 mm) | 3" (76.2 mm) | Max Stroke Down to Solid |
| Max Overpull to Re-Run | 90,000 lbs (40,000 daN) |
200,000 lbs (89,000 daN) |
325,000 lbs (145,000 daN) |
400,000 lbs (1,779,290 daN) |
Max Overpull to Re-Run |
| Max Temperature | 320°F(160°C) Standard 400°F (200°C) Hi-Temp |
320°F(160°C) Standard 400°F (200°C) Hi-Temp |
320°F(160°C) Standard 400°F (200°C) Hi-Temp |
320°F(160°C) Standard 400°F (200°C) Hi-Temp |
Max Temperature |

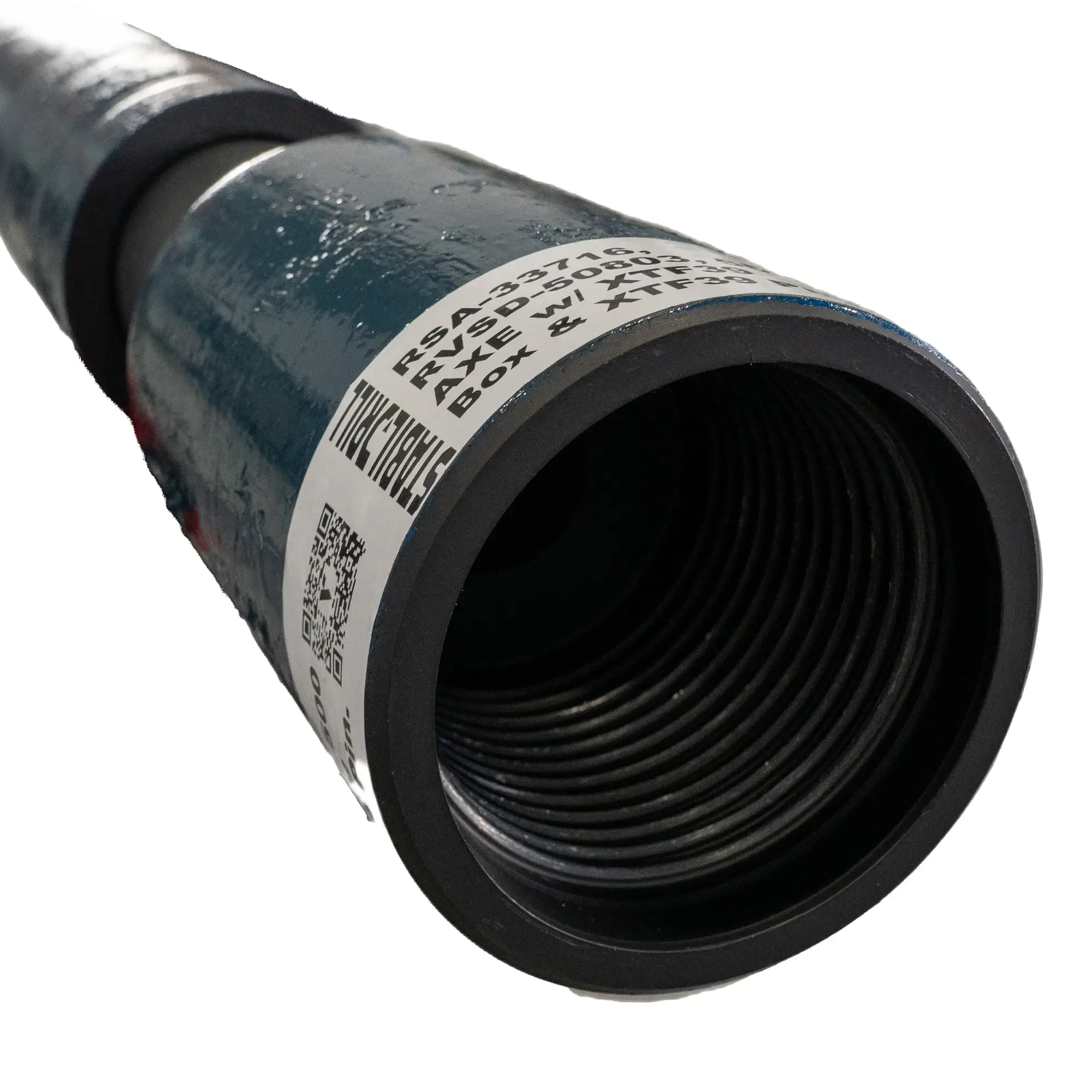

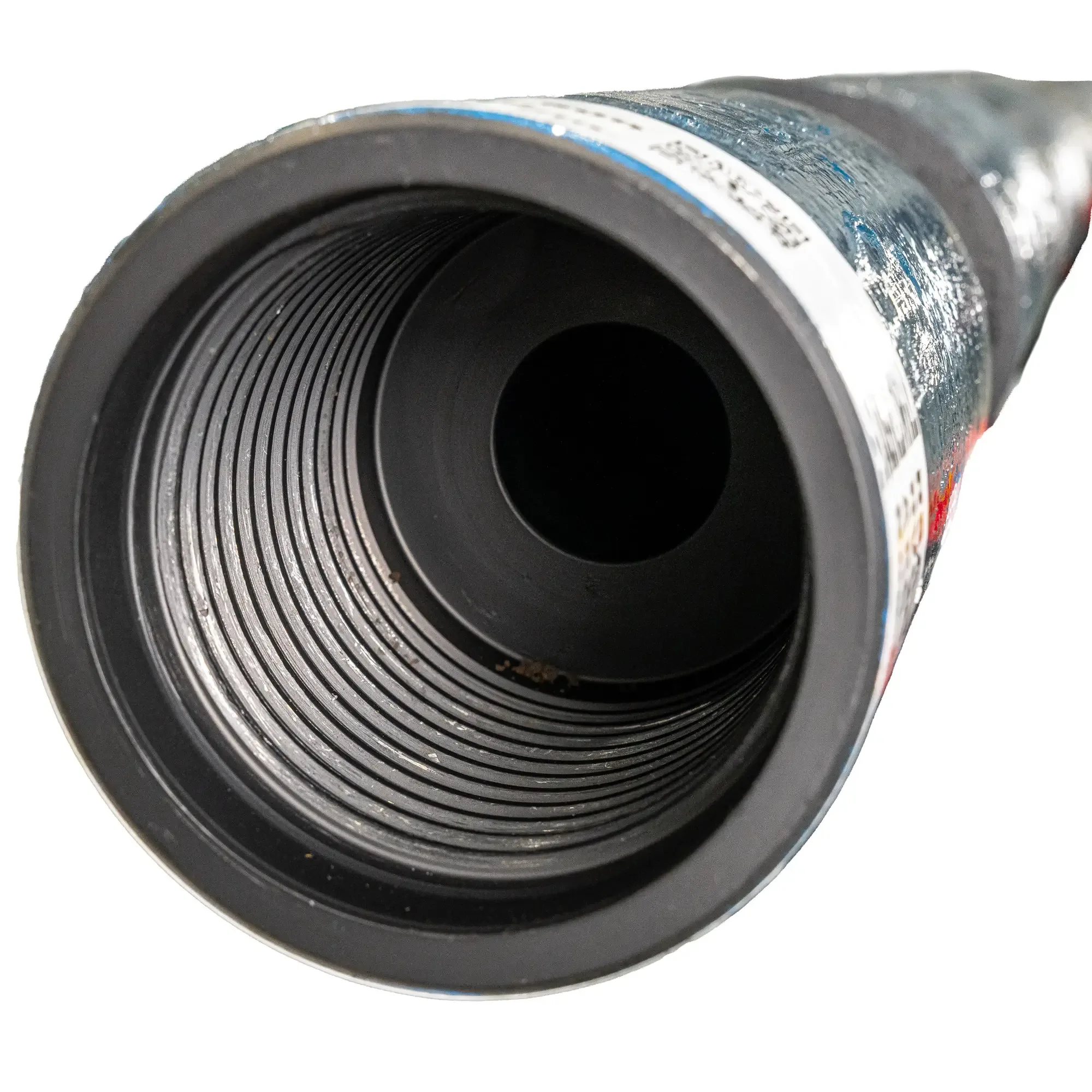

| Common Rig End Connections | 3-1/2 IF XT-39 |
4-1/2 XH 4-1/2 IF |
6-5/8 REG | 6-5/8 REG 7-5/8 REG |
Common Rig End Connections |
Dealing with axial and torsional vibration problems? Our Axe tool can be easily configured to operate in tandem with Storm to mitigate both issues.
