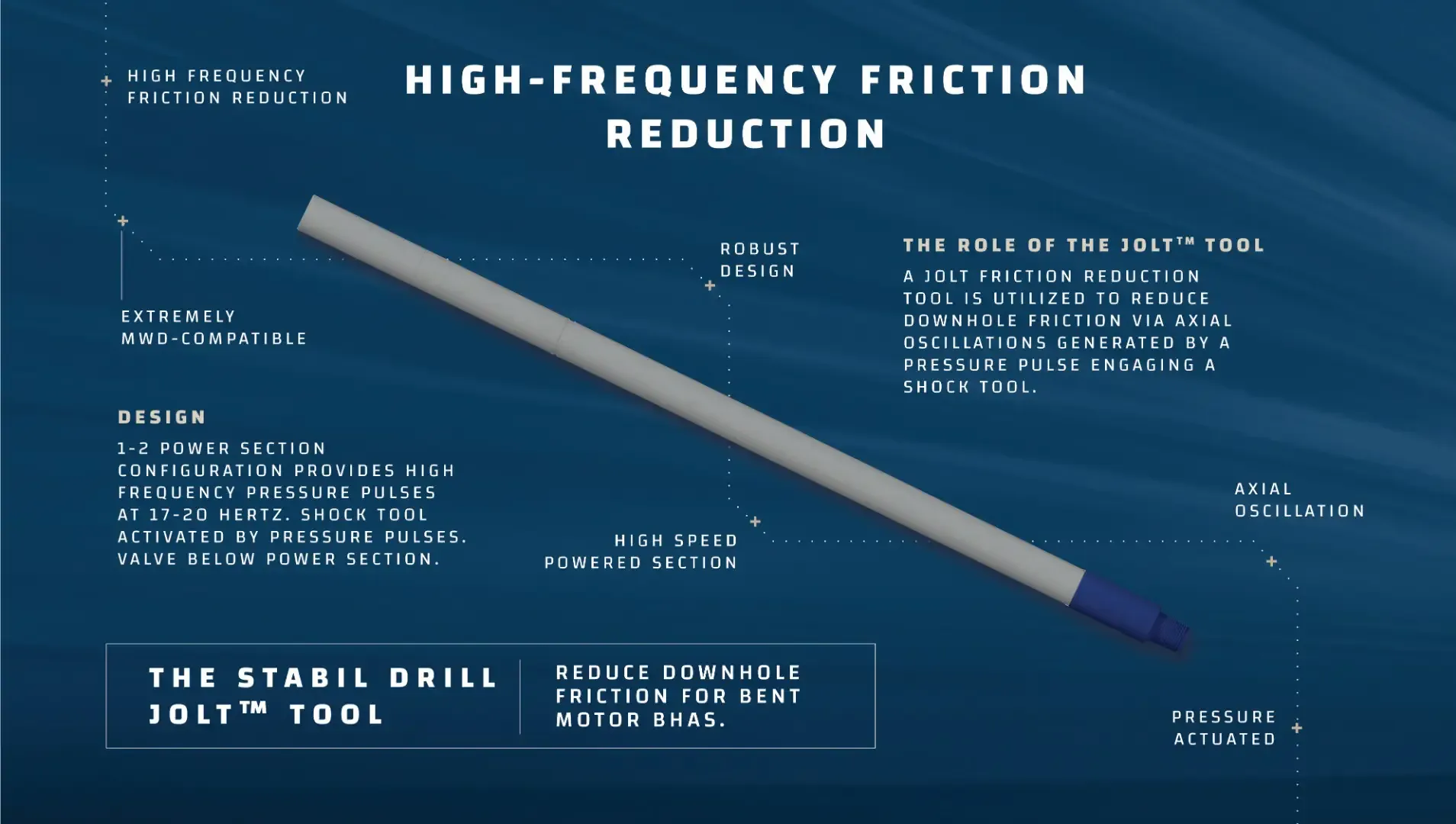

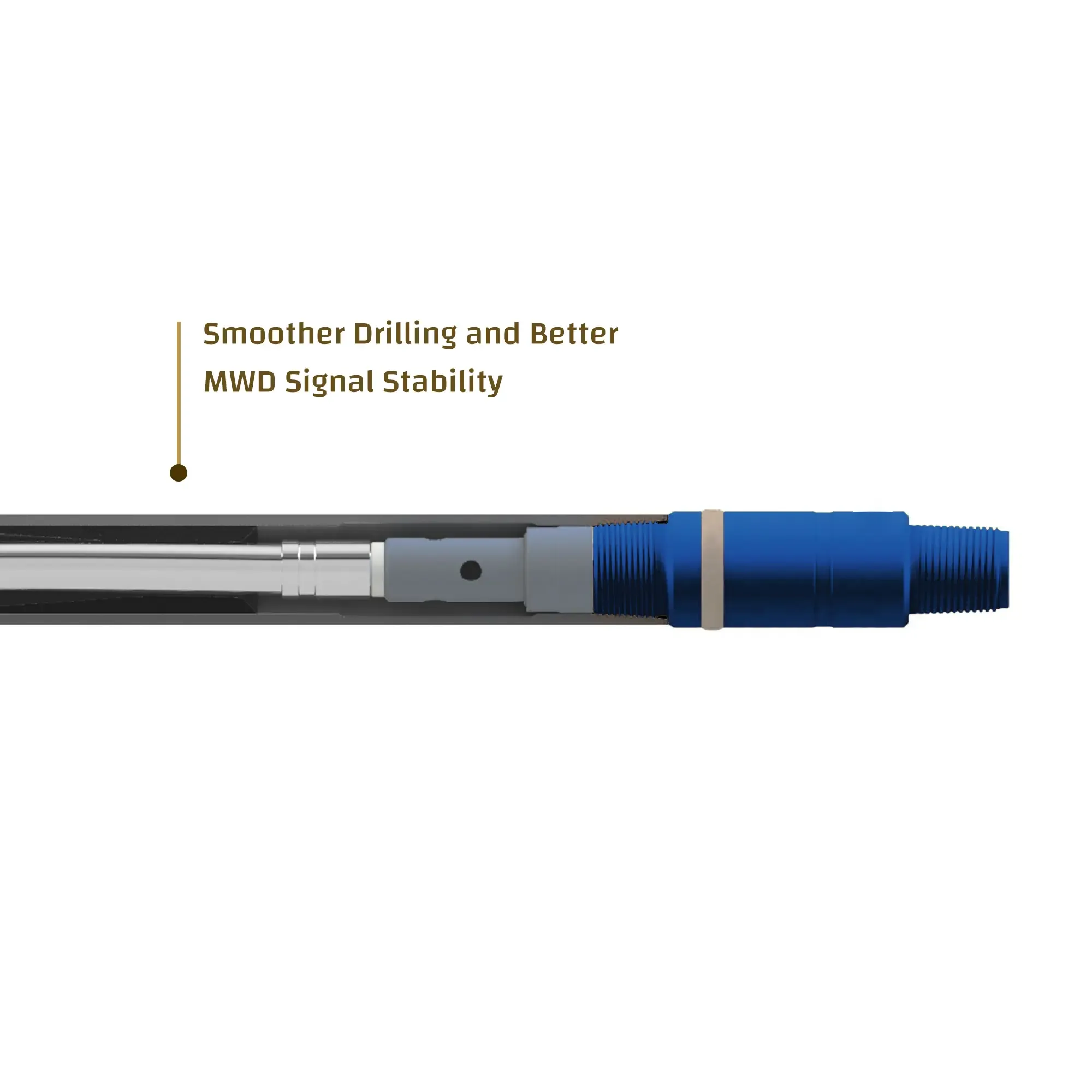

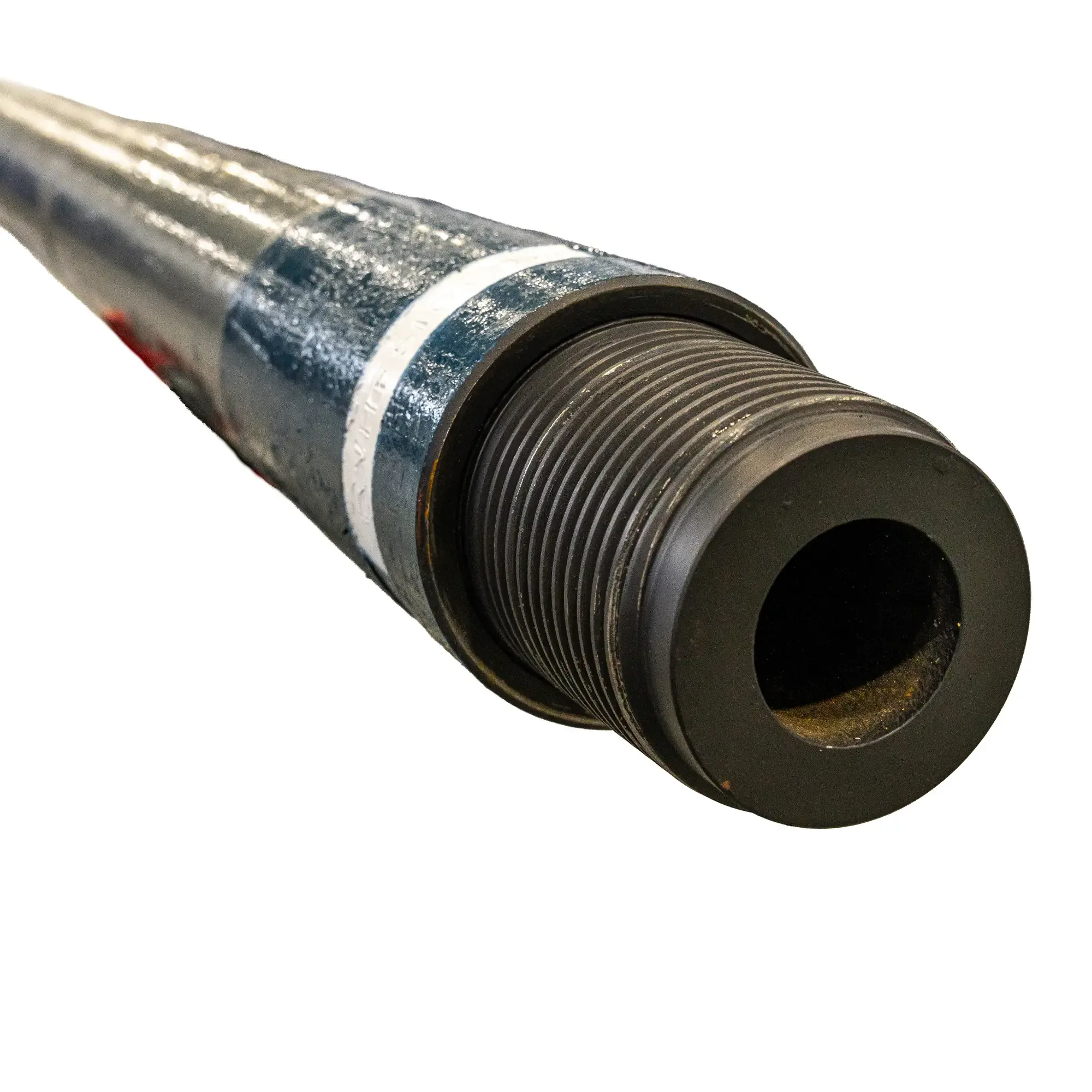

Friction can bring your oilfield drilling operations to a grinding halt. But JOLT uses a high-frequency pulse signature to create an axial oscillation along the drill string to unlock operational performance. Jolt is MWD-compatible and is engineered to increase steering efficiency, practical reach, and rate of penetration.

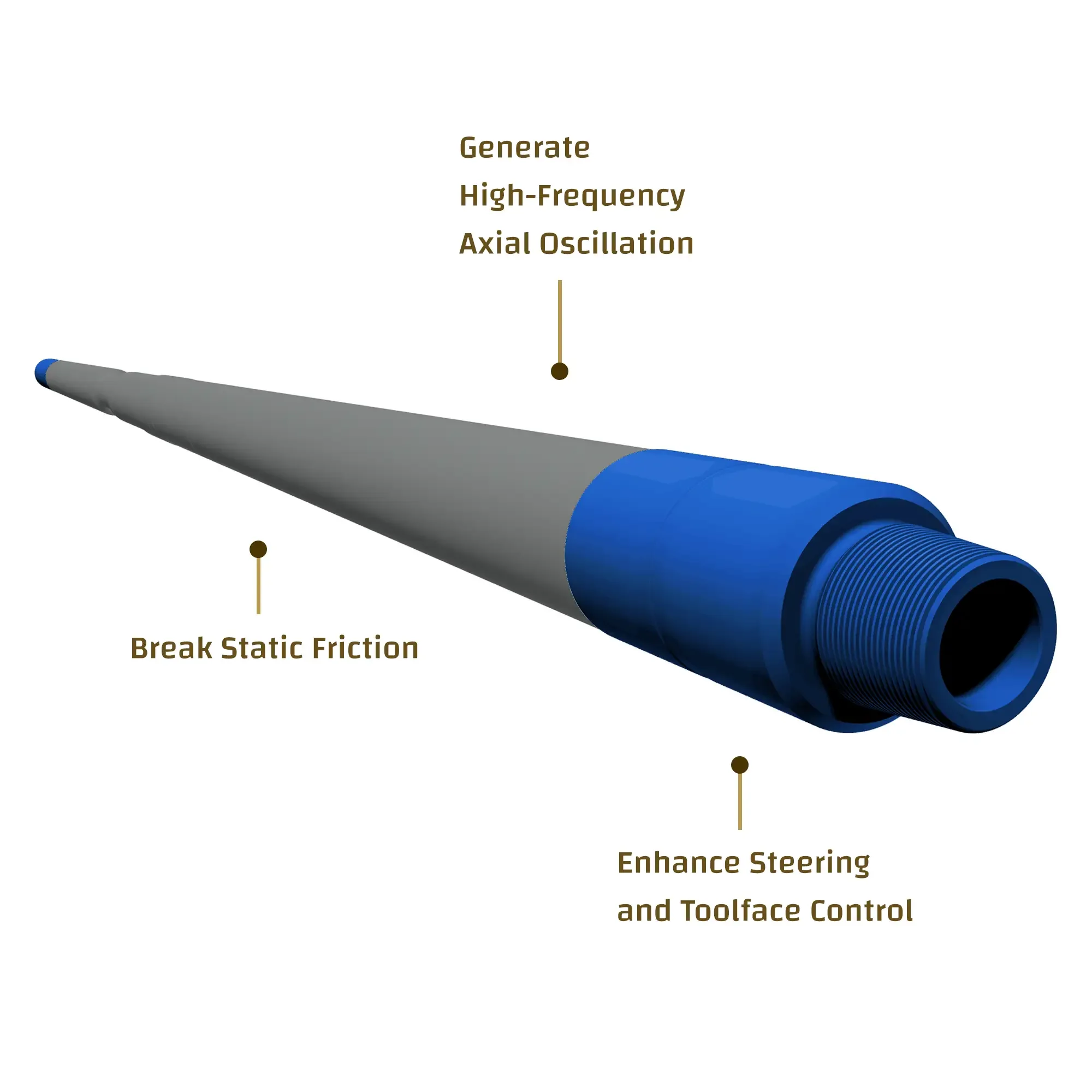

With a high-frequency axial pulse that disrupts drag and frees up motion, JOLT keeps your drill string moving when other tools stall out. Compatible with MWD systems and optimized for directional work, it boosts steering efficiency, extends reach, and accelerates ROP—all while protecting downhole components from damaging load cycles.
For...
| Model | 5 1/8" | 6 1/2" | 6 3/4" | 7 1/8" |
|---|---|---|---|---|
| Overall Length | 10’ (3 m) | 10.2’ (3.1 m) | 10.2’ (3.1 m) | 10.2’ (3.1 m) |
| Weight | 460 lbs (210 kg) | 800 lbs (360 kg) | 800 lbs (360 kg) | 860 lbs (390 kg) |
| Max Flow Rate | 350 gpm (1,300 l/min) |
700 gpm (2,650 l/min) |
700 gpm (2,650 l/min) |
700 gpm (2,650 l/min) |
| Max Temperature | 320°F (160°C) | 320°F (160°C) | 320°F (160°C) | 320°F (160°C) |
| Operating Frequency |
15 Hz @ 300 gpm 15 Hz @ 1,130 l/min |
17 Hz @ 600 gpm 17 Hz @ 2,270 l/min |
17 Hz @ 600 gpm 17 Hz @ 2,270 l/min |
17 Hz @ 600 gpm 17 Hz @ 2,270 l/min |
| Operating Avg Pressure |
500 - 600 psi (3,450 - 4,150 kPa) |
500 - 625 psi (3,450 - 4,300 kPa) |
500 - 625 psi (3,450 - 4,300 kPa) |
500 - 625 psi (3,450 - 4,300 kPa) |
| Max Pull (POOH 90%) |
515,000 lbs (230,000 daN) |
900,000 lbs (400,000 daN) |
1,150,000 lbs (510,000 daN) |
1,350,000 lbs (600,000 daN) |
| Max Pull (Re-Run 65%) |
370,000 lbs (165,000 daN) |
650,000 lbs (290,000 daN) |
840,000 lbs (374,000 daN) |
1,000,000 lbs (445,000 daN) |
| Connections | XT39, 3-1/2 IF & Premium Connections (DS, HT, etc.) |
4-1/2 IF4-1/2 XH DS50 |
4-1/2 IF4-1/2 XH DS50 |
4-1/2 IF & Premium Connections (XT, DS, HT, etc.) |
Friction can bring your oilfield drilling operations to a grinding halt. With a high-frequency pulse signature, the JOLT creates an axial oscillation along the drill string to unlock operational performance. Extremely MWD-compatible, JOLT increases steering efficiency, practical reach, and rate of penetration.
Break performance barriers and improve steering efficiency.Break performance barriers and improve steering efficiency.
